Specification available:
1×2,1×4,1×8,1×16,1×32,1×64,1×128
Description:

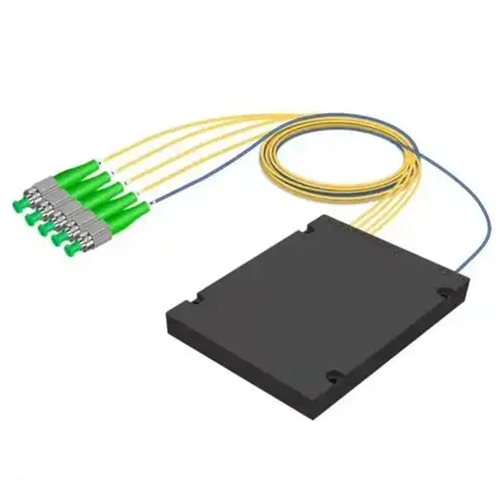

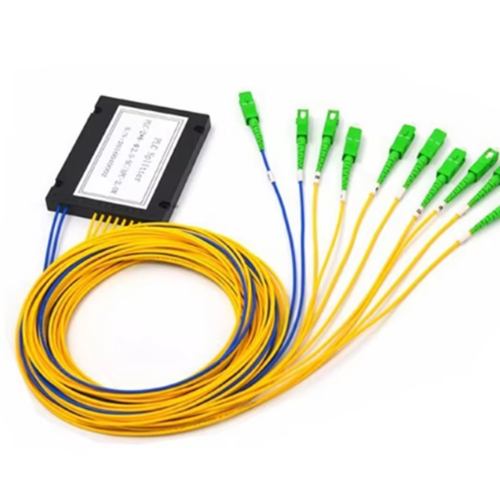

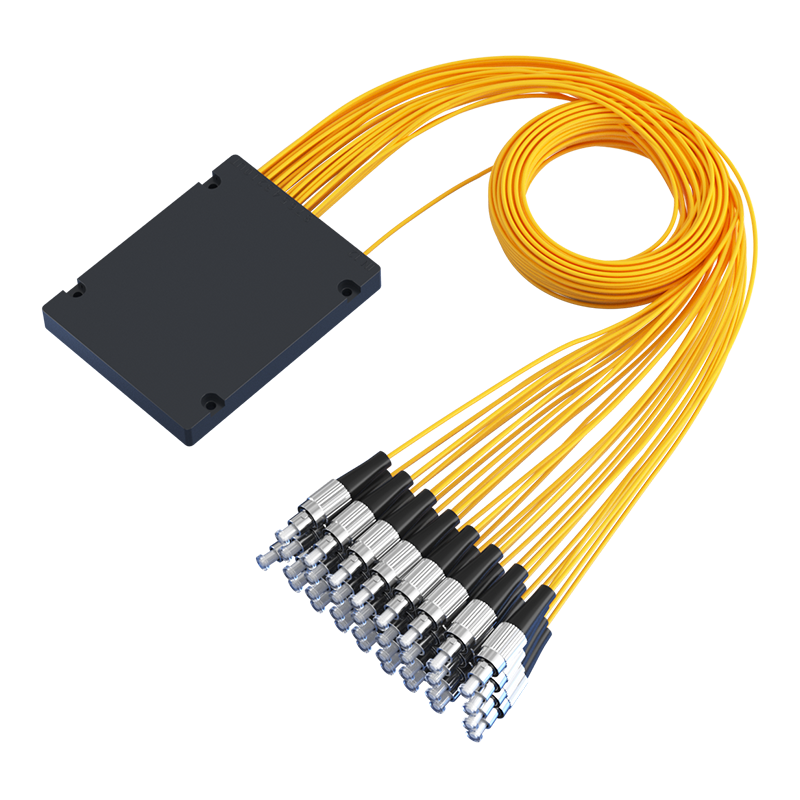

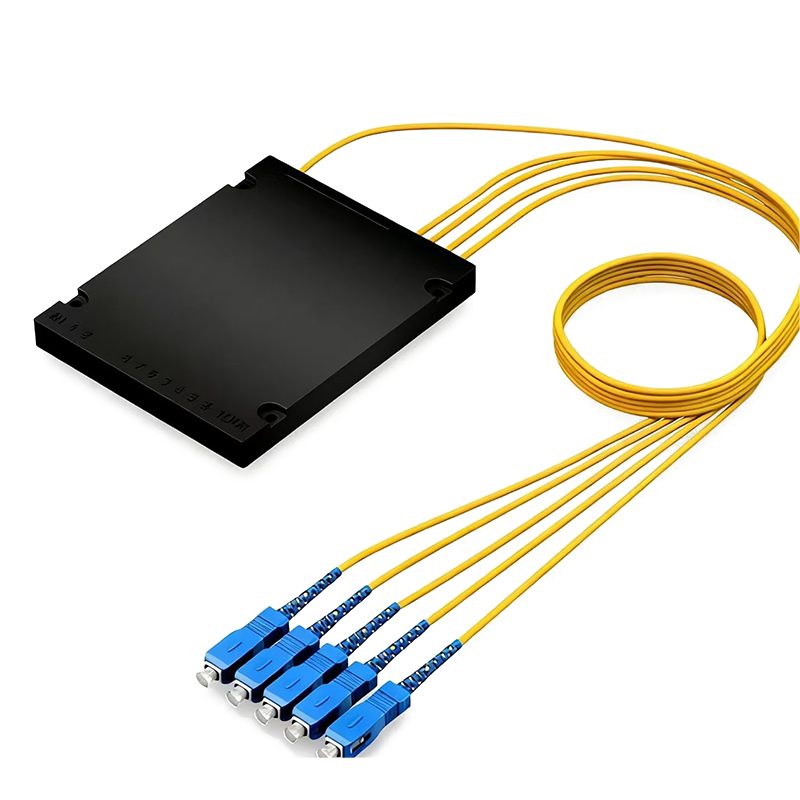

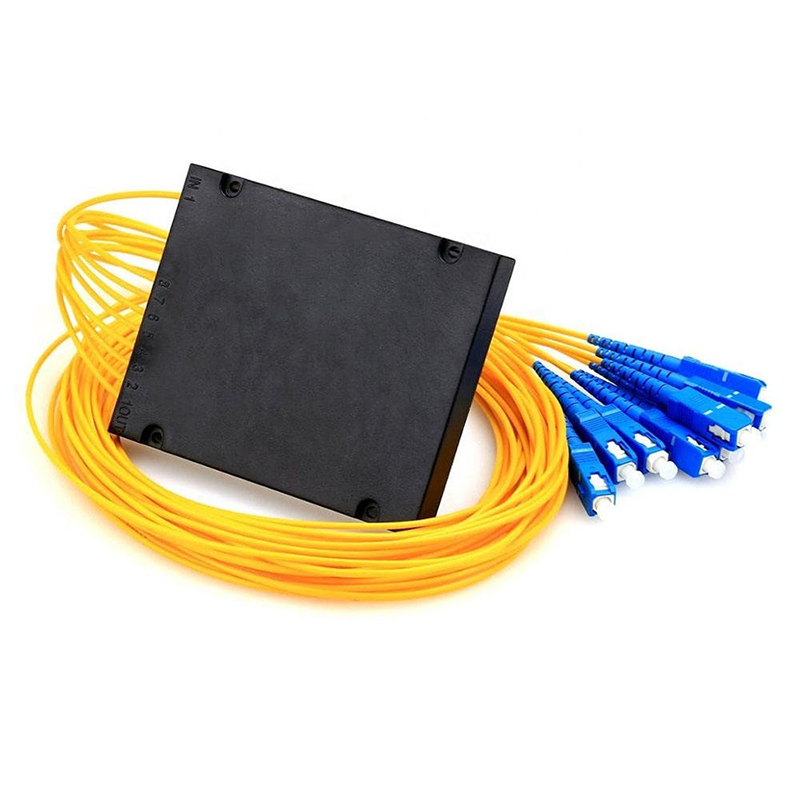

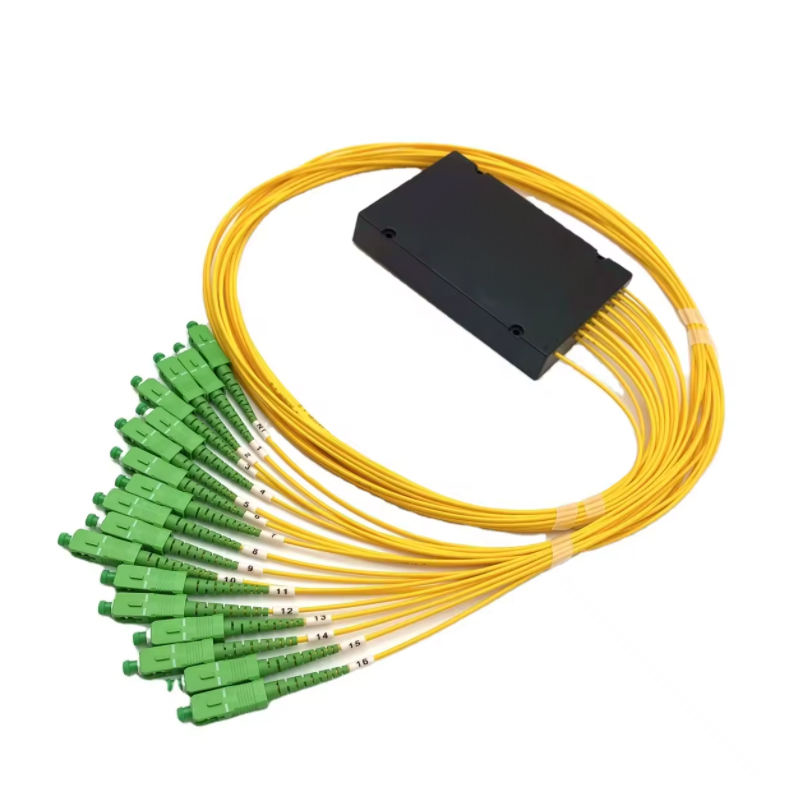

ABS box PLC splitter
Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network. The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from central office to customer premises in FTTX and FTTH networks. PLC Splitter offers a cost effective and space saving networking solution in optical transmission system. Plastic Box PLC Splitters packaged in an ABS box is with standard 2.0mm or 3.0mm fiber cable. Plastic Box PLC Splitters as passive optical splitters are widely used for FTTH Passive Optical Network, including EPON (as EPON Splitter) and GPON (as GPON Splitter)
| Product name | ABS box PLC splitter |
| Connector available | FC, ST, LC, SC |
| Fiber type | SM, MM |
| Fiber dia. | 2.0mm or 3.0mm |
| Cable Type | Single mode G657A1 |
| Length | 0.6m / 1m /1.5m....customized |
| Color | Yellow |
| Matrial | LSZH |
| Other Type | mini type, BOX Type FBT, Rack Mount Type, LGX box type |
| Operating bandwidth | 1310~1550nm |
| Product Keywords | ABS PLC Splitter,2.0mm PLC Splitter |
Characteristics:
All-fiber structure, good environmental stability
Low polarization-related loss, low back reflection
Compact structure, small size
Can be installed in various existing transfer boxes
