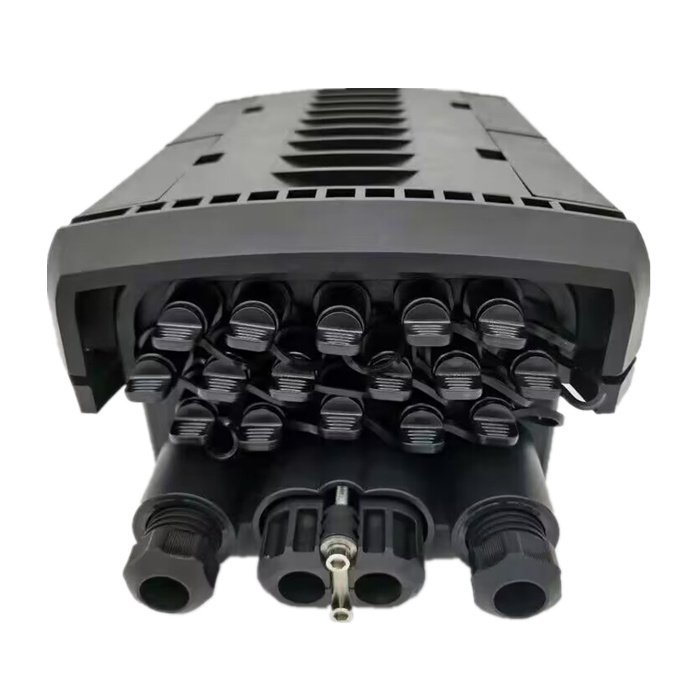

16 Port Fiber Optic Termination Box
Specification available:
16 Port
Description:
16 Port Fiber Optic Termination Box is able to hold up to 16subscribers and24splicing
points as closure. it is used as a splicing closure and a termination point for the feeder
cable to connect with drop cable in FTTX network system. It integrates fiber splicing,
splitting, distribution, storage and cable connection in one solid protection box.
Features:
* Water-proof design with IP-65 Protection Level.
* Integrated with flap-up splice cassette and adaptor holder
* All stainless metal plate and anti-rusting bolts, nuts
* Fiber bend radius control more than 40mm
* Suitable for the fusion splicer or mechanical splice
* 2Pcs of 1*8 Splitter can be installed as an option
* Mechanical sealing structure and mid-span cable entry.
* 16 ports cable entrance for drop cable
* 16 adapter for drop cable patching
* Dis-mountable adaptor panel
* Support midspan termination
* Rotatable and dis-mountable splice tray for easy splicing
* Easy operation and installation
Application:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level
up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without
disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port,
easy for maintenance and installation.
6. The box can be installed by the way of wall-mounted or poled-mounted, suitable
for both indoor and outdoor use.
